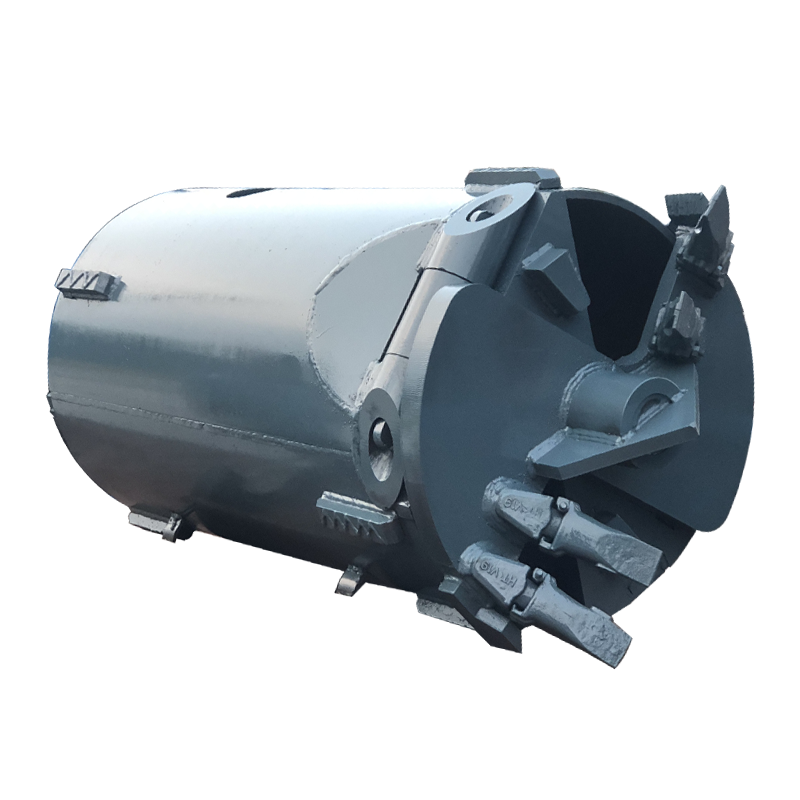

Rock Drilling Bucket With Soil Drilling Tooth 600-1800mm Q355D Steel

Name: Rock Drilling Bucket With Soil Drilling Tooth 6001800mm Q355D Steel
Brand: JTHL
Price: 2000 USD

Buy cheap Rock Drilling Bucket With Soil Drilling Tooth 600-1800mm Q355D Steel product

Brand Name : JTHL

Model Number : bucket -1

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : 2000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/month

Delivery Time : 7 days

Packaging Details : customer

Type : Drills

Package : SET

Number of pieces : 1

Material : steel

Color : any other colors

Craft : welding

Use : construction machine parts

Brand : JTHL

Contact Now

Drill buckets are mainly used for sandy soil, sludge, clay , muddy sandy gravel and weathered soft formation . The bucket can be designed into cylindrical type and conical type according to bucket diameter, type of drilling rig and soil conditions . the welding angle of bucket teeth can be designed according to formation conditions so that the drilling buckets can keep high efficiency of soil cutting amount in any formation conditions .

The bottom cove if made of high-strength Mn plate, and the cutting dege includes single-layer type and double-layer type; the soul inlet also includes single-bottom type and double-bottom type .

1. DRILL BUCKET WITH FLAT TEETH #Drilling Bucket with soil Drilling Tooth

FEATURE:

Optional prolong straight bucket shell can avoid drilling hole inclined.
Choosing conical shell type can accelerate dumping , increase of efficiency
Applicable scope: silt, gravel clay and highly weathered rock .
Kelly box size as per customer demand

Drilling Tool Model
Model	Size	Height	Bucket Thickness	Upper Bottom Thickness	Lower Bottom Thickness	No of teeth	Weight
Drilling Bucket with soil Drilling Tooth	φ600	1200	16	40	40	4	680
	φ700	1200	16	40	40	4	800
	φ800	1200	16	40	50	4	900
	φ900	1200	16	40	50	5	1050
	φ1000	1200	16	40	50	5	1100
	φ1100	1200	16	40	50	7	1280
	φ1200	1200	16	40	50	7	1350
	φ1250	1200	16	40	50	8	1400
	φ1300	1200	16	40	50	8	1500
	φ1400	1200	16	40	50	9	1650
	φ1500	1200	16	40	50	9	2050
	φ1600	1200	16	40	50	9	2250
	φ1700	1000	20	40	50	11	2450
	φ1800	1000	20	50	50	12	2700
	φ1900	1000	20	50	50	13	2900
	φ2000	800	20	50	50	14	3200
	φ2200	800	20	50	50	16	3800
	φ2500	800	20	50	50	19	4800
	φ2800	800	20	50	50	22	6000
	φ3000	800	20	50	50	24	7000
Kelly Box	Sany--150		Bauer--200			Bauer--250
Noted 1: Size refers to diameter of bore hole, all measurements in millimeters (mm); weight in kilograms(kg); Noted 2:drill bucket can be customized according to customer demand.
